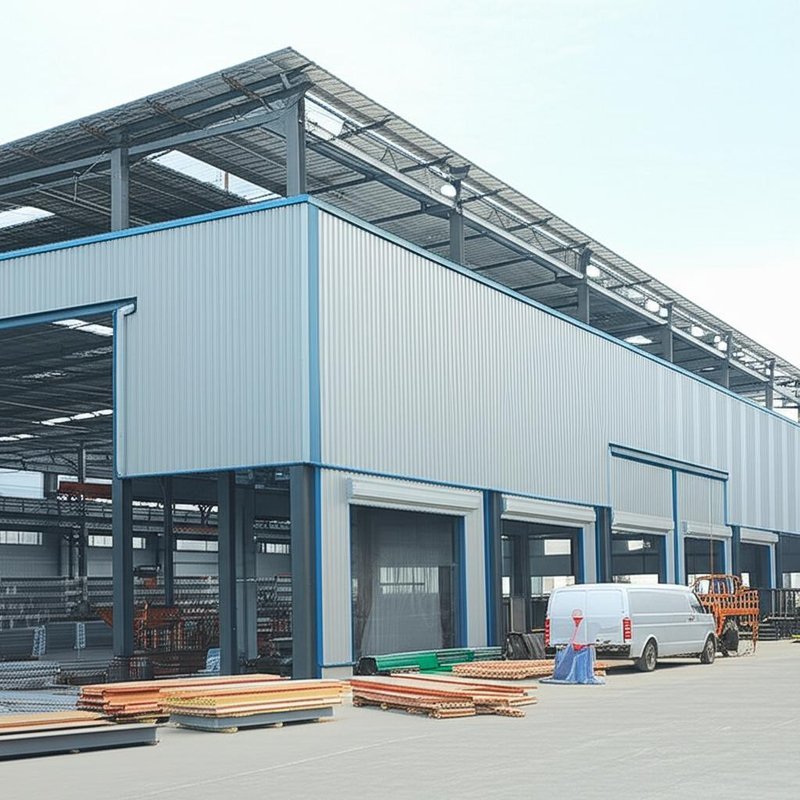

Expandable Mobile Steel Structure Building Customized for Industrial Workshops
| Place of Origin | SHANDONG, CHINA |
|---|---|
| Brand Name | Xinyongfeng |
| Certification | CE ; ISO |
| Minimum Order Quantity | 5ton |
| Price | $500.00/Tons 1-9 Tons |
| Packaging Details | PVC bag cloth with cable tie or as requirements. |
| Delivery Time | 8-14 days |
| Payment Terms | L/C,T/T,(30% Deposit) |
| Supply Ability | 5000ton / per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | Expandable Steel Structure Building,Mobile Steel Workshop,Customized Steel Factory |
||
|---|---|---|---|
You can tick the products you need and communicate with us in the message board.
Product Description
Structure Shed Design Building Factory Steel Structure Factory Expandable Mobile Top Wide Light Building Production Workshop
Material Specifications
| Project Sample | Steel structure warehouse |
|---|---|
| Building Size | Customizable (e.g., 78×30×8.5 m) |
Main Steel Structure
| Steel Column | H(300-550)×200×6×10 mm, steel Q345 |
|---|---|
| Steel Beam | H(300-550)×180+6,8 mm, H 300+180+6-8 mm, steel Q345 |
Secondary Steel Structure
| Roof Purlin | C180×75×50×2.5 mm |
|---|---|
| Wall Purlin | C180×75×50×2.5 mm |
| Cross Support | 20 round steel bar, steel Q235 |
| Column Bracing | 20 round steel bar, steel Q235 |
| Angle Brace | L50×4 Angle steel, steel Q235 |
| Tie Bar | 89×3 mm, steel Q235 |
Roof and Wall Panel
| Roof Panel | 50/80/100/150/200 mm sandwich panel (EPS, PU, Rock wool, Glass wool) |
|---|---|
| Wall Panel | 50/80/100/150/200 mm sandwich panel (EPS, PU, Rock wool, Glass wool) |
| Rolling Up Door | Automatic rolling up door |
| Single Wing Door | Sandwich panel door |
| Window | Aluminum/PVC sliding window with single glass |
| Fittings | Glass adhesive, self-tapping screw, etc. |
Other Fittings
| Embedded | M 24 steel Q235, process |
|---|---|
| Intensive Bolt | Grade 10.9 |
Frequently Asked Questions
Dear Customer,
If you have drawings, please share them with us for an accurate quotation. Our design team will create customized steel structure workshop plans based on your requirements. Please provide the following information for a satisfactory design:
- Location: Country and city where the building will be constructed
- Size: Length × width × eave height (mm × mm × mm)
- Wind load: Maximum wind speed (kn/m², km/h, or m/s)
- Snow load: Maximum snow height (kn/m² or mm) and temperature range
- Anti-earthquake: Required earthquake resistance level
- Brickwall: Needed (height: 1.2m, 1.5m, or other)
- Thermal insulation: Required (EPS, fiberglass wool, rockwool, PU sandwich panels) or metal steel sheets
- Door specifications: Quantity and size (width × height in mm)
- Window specifications: Quantity and size (width × height in mm)
- Crane requirements: Quantity, maximum lifting weight (tons), and lifting height (m)
