DN400 Ductile Cast Iron Pipe Zinc Bitumen Painting Mortar Cement Lining
| Brand Name: | Xinyongfeng |
| Model Number: | K9, K8, C40, C30, C25, etc. |
| MOQ: | 1 Ton |
| Price: | $800.00/Tons 1-9 Tons |
| Packaging Details: | PVC bag cloth with cable tie or as requirements. |
| Payment Terms: | L/C T/T (30% Deposit) |
Detail Information
Place of Origin:
Shandong, China
Certification:
ISO
Length:
6m, Cut To 5.7m.In General
Standard:
ISO2531, EN545 , EN598.
Application:
Water Supply Project, Sewage, Water Pipeline.
Shape:
Round
Hardness:
Full Hard
Pipe Wall Thickness:
K9, K8, C40, C30, C25, Etc.
Pull Strength:
≤230HB
Yield (≥ MPa):
≥300Mpa
Material:
Ductile Iron
Type:
Casting, Welded,T-type, Restrained
Processing Service:
Welding, Bending, Punching, Decoiling, Cutting
Internal Coating:
Mortar Cement Lining
Joint Type:
Self-Restrained
Keyword:
Ductile Iron Pipe
Color:
Black
Surface Treatment:
Anti-corrosion Coated
External Coating:
Zinc + Bitumen Painting
Technical Standard:
EN10210
Usage:
Water Systerm
Port:
QingDao,ShangHai,TianJin
Supply Ability:
50000 Ton/Tons per Month
Highlight:
DN400 Ductile Cast Iron Pipe
,Zinc Bitumen Painting Ductile Cast Iron Pipe
,Cement Mortar Lined Ductile Iron Pipe
Product Description

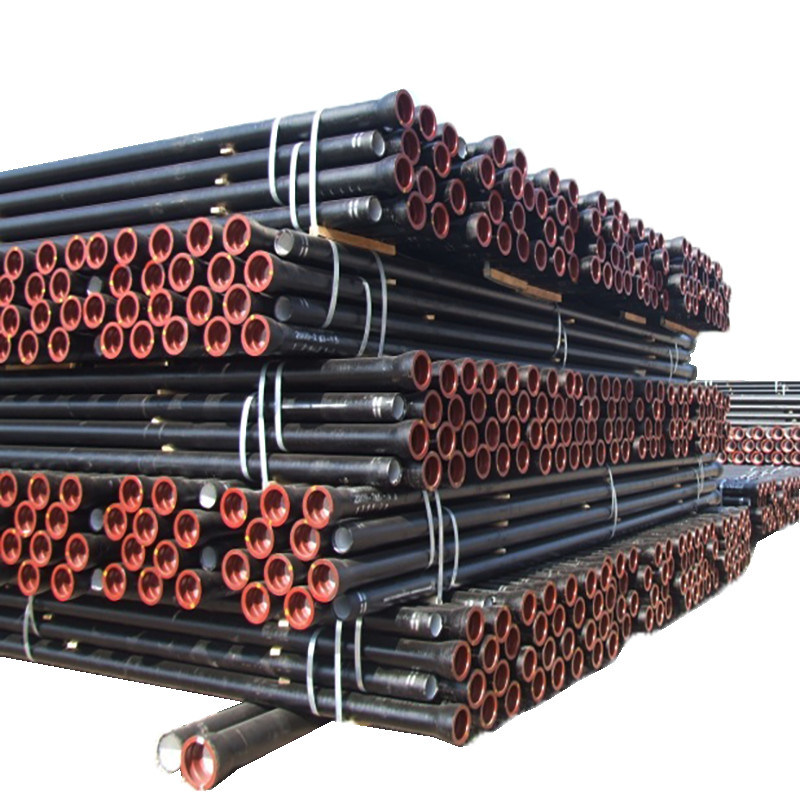

DN400 Ductile Cast Iron Pipe
Ductile iron pipe is a new product developed on the basis of gray cast iron pipe. Through spheroidizing and annealing process, the mechanical properties of cast iron are greatly improved. The following is the performance comparison of ductile iron pipe, gray cast iron pipe and steel pipe.
|
Product
|
Ductile Iron Pipe
|
|
|
|
|||
|
Length
|
6m, cut to 5.7m.In general,
the pipe length is 6m for bulk shipment and 5.7m for container shipment.
|
|
|
|
|||
|
Pipe class
|
K9, K8, C40, C30, C25, etc.
|
|
|
|
|||
|
Standard
|
ISO2531, EN545 , EN598.
|
|
|
|
|||
|
Pipe joint
|
Push-on joint(Tyton joint), K type joint, self-restrained joint
|
|
|
|
|||
|
Material
|
Ductile Cast Iron GGG50
|
|
|
|
|||
|
Pressure
|
PN10, PN16, PN25,PN40
|
|
|
|
|||
|
Internal Coating
|
a). Portland cement mortar lining
|
|
|
|
|||
|
|
b). Sulphate Resistant cement mortar lining
|
|
|
|
|||
|
|
c). High-Aluminum cement mortar lining
|
|
|
|
|||
|
|
d). Fusion bonded epoxy coating
|
|
|
|
|||
|
|
e). Liquid epoxy painting
|
|
|
|
|||
|
|
f). Black bitumen painting
|
|
|
|
|||
|
External Coating
|
a). zinc+bitumen(70microns) painting
|
|
|
|
|||
|
|
b). Fusion bonded epoxy coating
|
|
|
|
|||
|
|
c). Zinc-aluminum alloy +liquid epoxy painting
|
|
|
|
|||
|
Packing
|
Bundled with steel belts or in bulk
|
|
|
|
|||
|
Application
|
Water supply project, drainage, sewage, irrigation, water pipeline.
|
|
|
|
|||
